Guide: Sip Trunk

Introduction

With this manual we are trying to explain all the actions which the customer can perform in sipTrunk service.

EndPoints

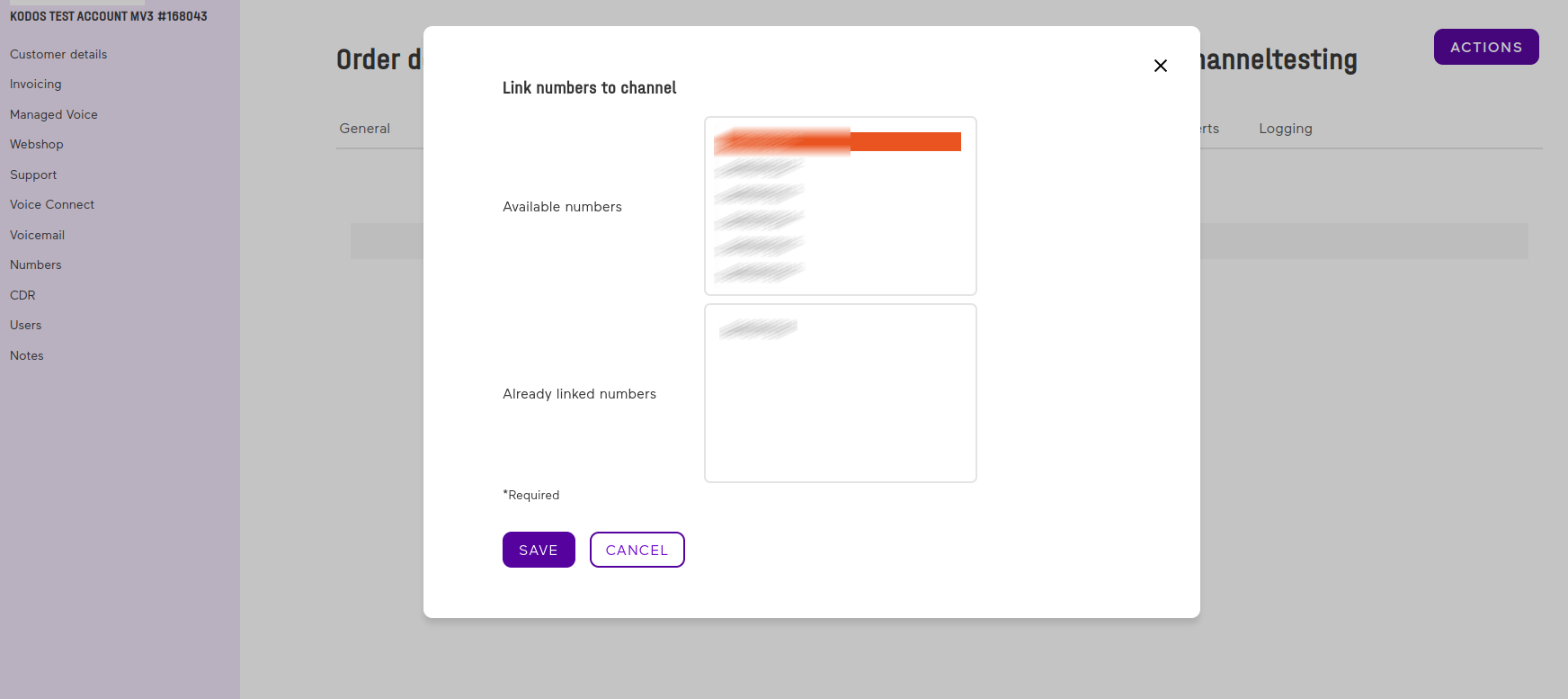

Connect number

This method is used to connect one single fixed number to a channel, both number and channel must belong to the same account. The number have to be available (not connected to other services).

POST /v1/channel-number

Parameters:

Parameter	Required	Type	Description
channel_name	required	string	name of the channel where the number will be linked
number	required	string	number in e164 format

Example Request

    {
      "channel_name": "name",
      "number": "+31500000000"
    }

Example Response

201

    {
      "channel_name": "name",
      "number": "+31500000000"
    }

Disconnect number

This method is used to disconnect one single number from a channel.

DELETE /v1/channel-number/{number}

Parameters:

Parameter	Required	Type	Description
number	required	string	number in e164 format

Example Request

__DELETE__ /v1/channel-number/+31500000000

Example Response

204

Channel callerId

This method retrieves all the available callersIds for the account given. Retrieved data depends on (optionally) offset and limit.

GET /v1/accounts/{accountId}/siptrunk-channel-callerids

Parameters:

Parameter	Required	Type	Description
accountId	required	UUID	Account UUID
offset	optional	int	Offset to start pagination
limit	optional	int	Limit to retrieve data

Example Request

__GET__ /v1/accounts/013dc5c1-ff09-4ece-ad3a-7f8f60949407/siptrunk-channel-callerids

Example Response

200

[
    {
        "callerId":"+4921100000000"
    },
    {
        "callerId":"+4921100000001"
    },
    {
        "callerId":"+4921100000002"
    }
]

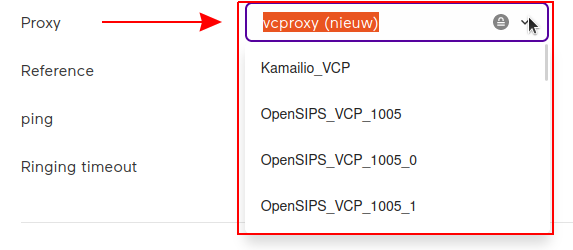

Channel Proxy

This method retrieves all the available proxies for the account given.

GET /v1/accounts/{accountId}/siptrunk-channel-proxies

Parameters:

Parameter	Required	Type	Description
accountId	required	UUID	Account UUID

Example Request

__GET__ /v1/accounts/013dc5c1-ff09-4ece-ad3a-7f8f60949407/siptrunk-channel-proxies

Example Response

200

[
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30ce",
        "name": "Proxy 1"
    },
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30c1",
        "name": "Proxy 2"
    },
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30c2",
        "name": "Proxy 3"
    },
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30c3",
        "name": "Proxy 4"
    },
]

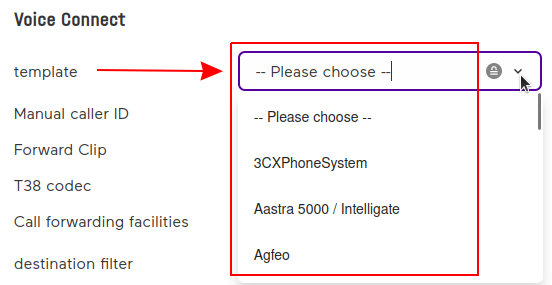

ChannelTemplate

This method retrieves all the available channel templates for the account given.

GET /v1/accounts/{accountId}/siptrunk-channel-templates

Parameters:

Parameter	Required	Type	Description
accountId	required	UUID	Account UUID

Example Request

__GET__ /v1/accounts/013dc5c1-ff09-4ece-ad3a-7f8f60949407/siptrunk-channel-templates

Example Response

200

[
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30ce",
        "name": "Template 1"
    },
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30c2",
        "name": "Template 2"
    },
    {
        "id": "3fd8e2d9-2d29-4528-9c80-09cdc5bd30c4",
        "name": "Template 3"
    }
]

ChannelCallBarring

This method retrieves all the available call barrings for the account given.

GET /v1/accounts/{accountId}/siptrunk-channel-callbarrings

Parameters:

Parameter	Required	Type	Description
accountId	required	UUID	Account UUID

Example Request

__GET__ /v1/accounts/013dc5c1-ff09-4ece-ad3a-7f8f60949407/siptrunk-channel-callbarrings

Example Response

200

[
    {
        "name": "Auskunft",
        "code": "DENUMINFO"
    },
    {
        "name": "Kurzzeitiger Massenverkehr",
        "code": "DEMASS"
    },
    {
        "name": "Pagers",
        "code": "DEPAGER"
    },
    {
        "name": "Virtuelle Private Netze ",
        "code": "DEVPN"
    }
]

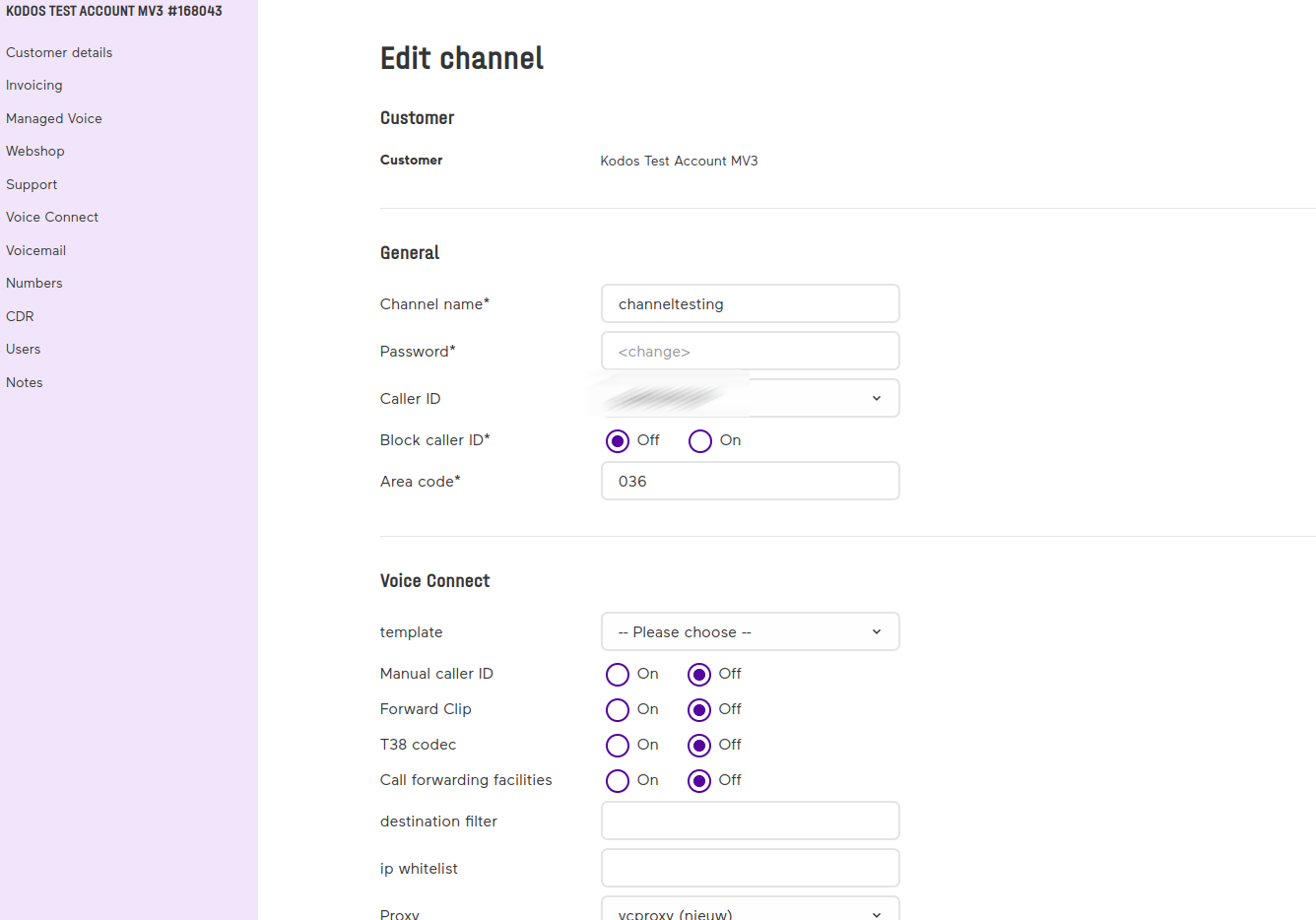

Edit Channel

This method is used to edit a channel.

POST /v1/channel/{name}

Parameters:

Parameter	Required	Type	Description
new_name	optional	string	New name for the channel
password	optional	string
caller_id	optional	string	Number in E164 format available from channel callerId endpoint
block_caller_id	optional	boolean
area_code	optional	string
call_barrings	optional	array	Collection of Call Barrings codes
full_e164	optional	string
sip_trunk	optional	object	Sip Trunk configuration (Documented below)
audio_stream	optional	object	Audio Stream configuration (Documented below)
clip	optional	object	Clip configuration (Documented below)
did	optional	object	Did configuration (Documented below)
failover	optional	object	Failover configuration (Documented below)
microsoft_teams_configuration	optional	object	Microsoft Teams Configuration (Documented below)

Sip Trunk parameters:

Parameter	Required	Type	Description
template_id	optional	UUID
manual_caller_id	optional	boolean
forward_clip	optional	boolean
t38_codec	optional	boolean
call_forwarding_facilities	optional	boolean
destination_filter	optional	string
ip_whitelist	optional	string
proxy_id	optional	UUID
reference	optional	string
ping	optional	integer
ringing_timeout	optional	integer

Audio Stream parameters:

Parameter	Required	Type	Description
dtmf	optional	integer
g729_codec	optional	boolean
h263_codec	optional	boolean
h264_codec	optional	boolean
call_forwarding_facilities	optional	boolean
allow_external_rtp	optional	boolean
rtp_timeout	optional	string | null
rtp_hold_timeout	optional	string | null
remote_party_id	optional	boolean
progress_inband	optional	boolean

Clip parameters:

Parameter	Required	Type	Description
ten_digits_length	optional	boolean
method	optional	integer
deny	optional	boolean
restrict_value	optional	string

Did parameters:

Parameter	Required	Type	Description
ten_digits_length	optional	boolean
in_display_name	optional	boolean
to_header	optional	boolean
uri_header	optional	boolean
filter	optional	string

Failover parameters:

Parameter	Required	Type	Description
forward_to	optional	string
external_caller_id	optional	boolean

Microsoft Teams Configuration parameters:

Parameter	Required	Type	Description
microsoft_tenant_id	required	UUID

Call Barrings Parameter

Collection of Call Barrings codes retrieved from GET endpoint ChannelCallBarring

{
    "call_barrings": [
        "INT",
        "MOB",
        "S0909"
    ],
}

Sip Trunk Parameter

Ping

Possible Values:
- (1) Do not ping
- (2) SIP options ping
- (3) UDP ping

Clip Parameter

Method

Possible Values:
- (0) Static (as defined in caller ID settings)
- (1) Dynamic in P-Asserted of P-Preferred-Identity header
- (2) Dynamic in Remote-Party-ID header ¹
- (3) Dynamic in From header ¹
- (5) Dynamic in From header and P-Asserted header ²

Example Request

{
    "new_name": "channelexample1234",
    "password": "strongpassword",
    "caller_id": "+17864087525",
    "block_caller_id": false,
    "area_code": "036",
    "full_e164": true,
    "call_barrings": [
        "INT",
        "MOB",
        "S0909"
    ],
    "sip_trunk": {
        "channel_template_id": "f26e4670-20bf-4cad-9261-489e8ef765de",
        "manual_caller_id": false,
        "forward_clip": false,
        "t38_codec": false,
        "call_forwarding_facilities": false,
        "destination_filter": "filterValue",
        "ip_whitelist": "10.0.0.1;10.0.4.20",
        "channel_proxy_id": "c665c4b0-20d1-4c33-aee1-c0f67da78e03",
        "reference": "reference",
        "ping": 3,
        "ringing_timeout": 180
    },
    "audio_stream": {
        "dtmf": 1,
        "g729_codec": false,
        "h263_codec": false,
        "h264_codec": false,
        "allow_external_rtp": false,
        "rtp_timeout": "1800",
        "rtp_hold_timeout": "1900",
        "remote_party_id": false,
        "progress_inband": false
    },
    "clip": {
        "ten_digits_length": true,
        "method": 3,
        "deny": false,
        "restrict_value": "restrictvalue"
    },
    "did": {
        "ten_digits_length": false,
        "in_display_name": false,
        "to_header": false,
        "uri_header": false,
        "filter": "filter"
    },
    "failover": {
        "forward_to": "12345678",
        "external_caller_id": true
    },
    "microsoft_teams_configuration": {
        "microsoft_tenant_id": "462e0bdf-408b-4e94-baab-b5a8bf9a9e00"
    }
}

Example Response

200

{
  "channel_name": "name"
}

400

{
  "error_identifier": "urn:error:sip-trunk:operator",
  "error_message": "Proxy not found"
}

403

{
  "error_identifier": "urn:error:sip-trunk:insufficient-rights",
  "error_message": "Proxy not found"
}

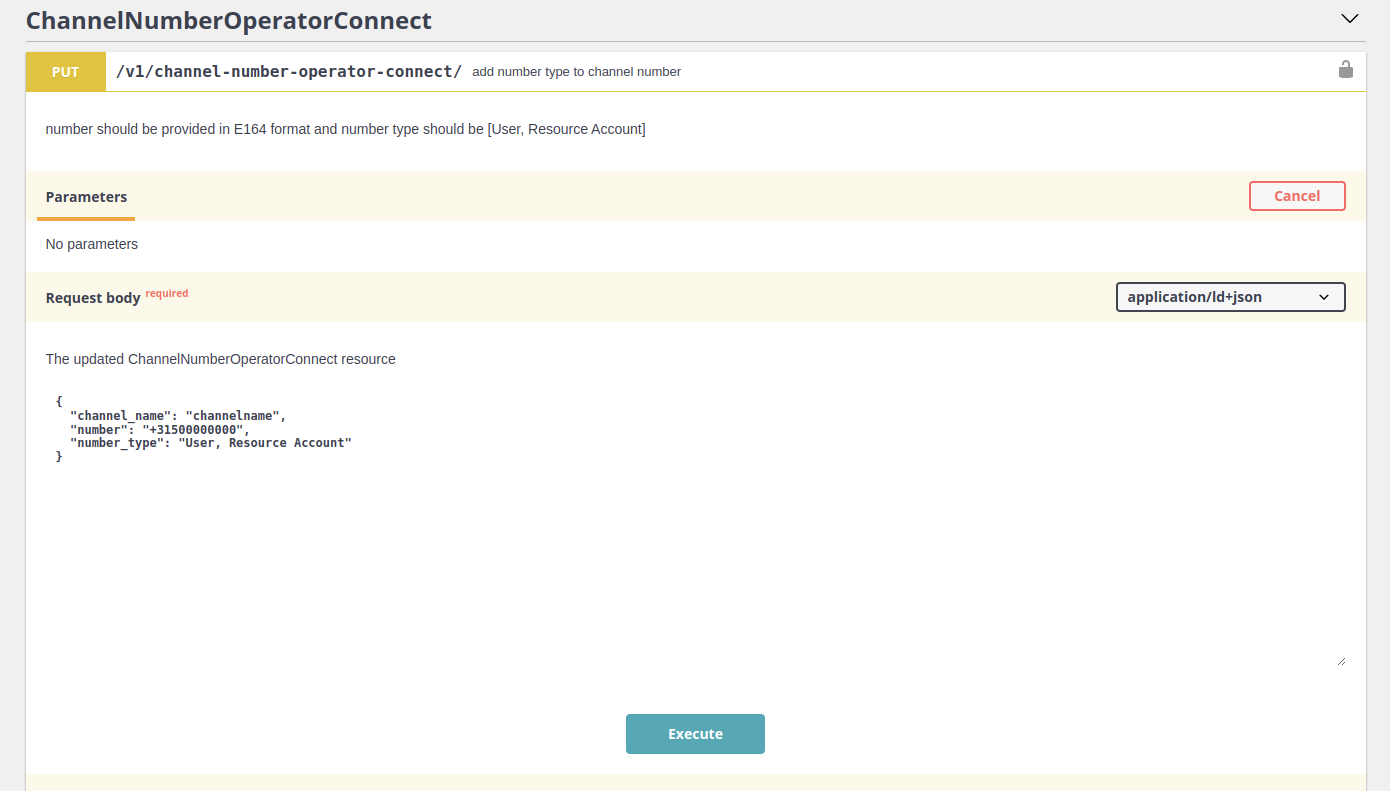

Add number-type to an Operator-Connect number

This method is used to add a number-type to a number connected to a channel of an Operator-Connect subscription.

PUT /v1/channel-number-operator-connect/{channel_name}

Parameters:

Parameter	Required	Type	Description
channel_name	yes	string	Existing channel name
number	yes	string	Only one number already connected to the above channel
number_type	yes	string	Operator-Connect types: "User", "Resource Account" or ""

Example Request

{
    "channel_name": "dutchoperatorconnect",
    "number": "004921141873130",
    "number_type": "Resource Account"
}

Example Response

200

{
    "@context": "/contexts/ChannelNumberOperatorConnect",
    "@id": "/channel_number_operator_connects/dutchoperatorconnect",
    "@type": "ChannelNumberOperatorConnect",
    "numbers": "004921141873130",
    "number_type": "Resource Account"
}

404

{
  "error_identifier": "urn:error:sip-trunk:operator",
  "error_message": "Channel name does not exist"
}

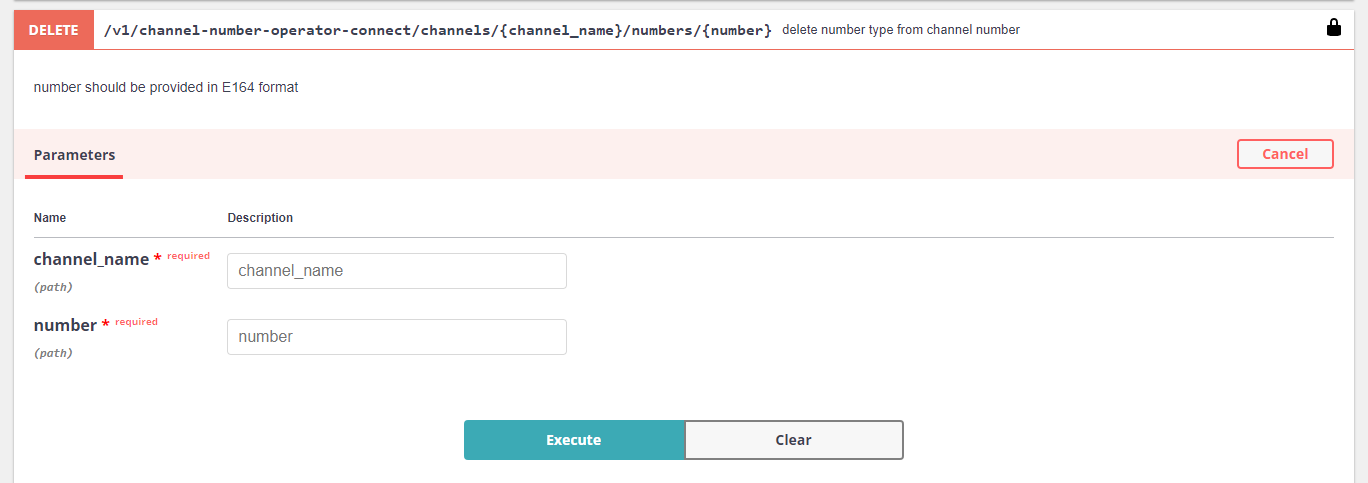

Remove number-type from an Operator-Connect number

This method is used to remove a number-type from a number connected to a channel of an Operator-Connect subscription.

DELETE /v1/channel-number-operator-connect/channels/{channel_name}/numbers/{number}

Parameters:

Parameter	Required	Type	Description
channel_name	yes	string	Existing channel name
number	yes	string	Only one number already connected to the above channel

Example Request

__DELETE__ /v1/channel-number-operator-connect/channels/channelname/numbers/+31500000000

#### Example Response
204

400

{
    "error_identifier": "urn:error:sip-trunk:operator",
    "error_message": "Channel Number selected does not have Number type"
}

---

1. Not allowed when subscription linked to this channel has a product configured with the clip method option restricted. ↩↩

2. Only available for Germany. ↩
